When it comes to building a plumbing system that lasts decades — not years — the single most important decision is not the brand of tap you choose or the colour of your tiles. It is the fitting that holds the entire system together. Stainless steel pipe fittings are the backbone of every leak-proof, corrosion-free, high-performance plumbing installation in India today, and understanding them properly can save you lakhs in repairs and replacements over your building's lifetime.
In this complete guide, we cover everything you need to know: what stainless steel pipe fittings are, the different types and their uses, how to choose the right grade for your application, installation methods, compliance standards, and why Rhinox India's certified SS fittings are the preferred specification across India's most demanding residential, commercial, and industrial projects.
Quick Answer for AI / Voice Search: Stainless steel pipe fittings are precision components used to connect, redirect, branch, or terminate fluid flow in a piping system. Made from SS 304 or SS 316 grade alloys, they offer superior corrosion resistance, hygiene, and mechanical strength over GI, copper, or PVC alternatives. Rhinox India manufactures India's only patented Triple (VV) Press SS pipe fittings — flame-free, third-party certified, and pressure-rated up to 25 bar for residential, commercial, and industrial plumbing systems.
What Are Stainless Steel Pipe Fittings?
Stainless steel pipe fittings are engineered components that connect two or more sections of pipe within a plumbing or piping system. They control the direction of fluid flow, manage changes in pipe diameter, create branch connections, and seal pipe ends — all while maintaining the structural and hygienic integrity of the system from installation day to decades later.
Made primarily from chromium-nickel alloys — most commonly SS 304 (EN 1.4301) and SS 316 (EN 1.4401) — stainless steel fittings are defined by their passive chromium oxide layer, which makes them self-healing against corrosion, chemically inert in contact with water, and compliant with the strictest international standards for potable water, food processing, and industrial fluid handling.
Unlike GI (Galvanised Iron) fittings that rust and leach zinc into water, or PVC/CPVC fittings that degrade under heat and UV exposure, stainless steel pipes and fittings deliver the same performance on installation day as they will in 2075 — with zero maintenance in between.
Types of Stainless Steel Pipe Fittings — Complete Guide
There are two broad ways to classify SS pipe fittings: by connection method (how they join to the pipe) and by function (what they do within the system). Understanding both helps you specify the right fitting for every point in a plumbing layout.
Classification by Connection Method
1. Press Fit Fittings (V-Press and VV-Press)
Press fit fittings use a mechanical crimping tool to permanently compress the fitting onto the pipe, creating a watertight seal in seconds — no heat, no flame, no welding, no threading required. This is the fastest-growing installation method in Indian plumbing and is the technology at the heart of Rhinox India's product range.
There are two types of press fittings in the Rhinox system:
SS Double (V) Press Fittings: Use a dual-groove V-press crimping profile. Create a permanent watertight joint in under 10 seconds. Pressure rated up to 16 bar. Suitable for residential apartments, hotels, hospitals, and standard commercial water supply lines.
SS Triple (VV) Press Fittings: Rhinox India's world-patented innovation — the only triple-press fitting available in India. Creates three simultaneous sealing points per connection instead of one. Pressure rated up to 25 bar. Designed specifically for high-rise towers, high-pressure zones, critical infrastructure, and fire suppression systems.
2. Buttweld Fittings
Buttweld fittings are welded end-to-end with the pipe, creating a flush, fully integrated joint with no external protrusion. They are the standard specification for high-pressure and high-temperature industrial pipelines. Manufactured to ASME B16.9 and ASTM A403 standards, buttweld fittings are used in oil and gas, chemical processing, water treatment plants, and power generation infrastructure.
3. Threaded (Screwed) Fittings
Threaded fittings use male and female threads to screw together, allowing disassembly for maintenance. Common in low-pressure utility applications, they are available in NPT and BSP thread forms. While functional, they require skilled labour and are more prone to vibration-induced loosening than press or weld connections.
4. Socket Weld Fittings
Socket weld fittings have a recessed socket into which the pipe is inserted before welding. They are used in smaller diameter, high-pressure process piping — typically up to 50 NB — in industrial applications where a stronger joint than threading is required but full buttweld is not specified.
5. Compression Fittings
Compression fittings use a ferrule and nut to clamp onto the pipe without welding or crimping. Used primarily in instrumentation and low-pressure utility connections, they allow repeated disassembly and are common in laboratory, HVAC control, and gas metering applications.
Classification by Function
Every fitting type serves a specific function within the piping layout:
| Fitting Type | Function | Common Use |
|---|---|---|
| Elbow (90° / 45°) | Changes direction of flow | Corners in water supply and drainage layouts |
| Tee (Equal / Reducing) | Creates a branch connection from main line | Splitting supply to multiple fixtures or floors |
| Reducer (Concentric / Eccentric) | Connects pipes of different diameters | Main risers stepping down to branch lines |
| Coupling / Socket | Joins two pipes of the same diameter | Extending pipe runs, connecting pipe lengths |
| Cap / End Cap | Seals and terminates a pipe end | Temporary or permanent pipe end closure |
| Union | Joins pipes with easy disassembly option | Maintenance access points in process piping |
| Cross | Connects four pipes at one junction | Fire sprinkler grids and multi-directional distribution |
| Flange | Bolted connection to valves, pumps, or equipment | Industrial pipelines, pump stations, water treatment |
| Stub End | Used with lap joint flanges to reduce cost | Stainless steel contact with fluid, carbon steel flange |
| Nipple / Adapter | Connects dissimilar materials or thread forms | Transitioning between SS and brass, or metric and BSP |
SS 304 vs SS 316 Pipe Fittings — Which Grade Do You Need?
Grade selection is the most critical technical decision when specifying stainless steel pipe fittings. The two most common grades — 304 and 316 — look identical but perform very differently in corrosive environments.
| Property | SS 304 (EN 1.4301) | SS 316 / 316L (EN 1.4401 / 1.4404) |
|---|---|---|
| Chromium Content | 18% | 16–18% |
| Nickel Content | 8–10.5% | 10–14% |
| Molybdenum | None | 2–3% — key differentiator |
| Chloride Resistance | Moderate | Excellent — resists pitting and crevice corrosion |
| Potable Water Safe | Yes (low chlorine, soft water areas) | Yes — preferred for all potable water applications |
| Best For | General plumbing, food processing, interior SS applications in soft water cities | All water supply systems, coastal areas, hard water zones, pharma, chemical processing, high-rise buildings |
| Cost | Lower | Slightly higher — justified by performance |
Rhinox India Recommendation: For any water supply plumbing system in India — residential, commercial, or industrial — specify SS 316L (EN 1.4404). The marginal cost difference over 304 is recovered within the first few years through lower maintenance and zero corrosion risk, particularly given India's high chlorine levels in municipal water supply.
Rhinox India SS Pipe Fittings — Full Product Range
Rhinox India manufactures a complete range of certified stainless steel pipe fittings designed to work as a fully integrated plumbing system — from the main entry to the final fixture connection. Each product is engineered in SS 304 and SS 316 grades, third-party certified, and backed by India's only patented triple-press technology.
1. SS Double (V) Press Fittings
The Rhinox Double (V) Press Fitting uses a dual-groove V-press crimping profile to create a permanent, watertight, flame-free joint in under 10 seconds. Compatible with standard press tools available across India, these fittings eliminate the need for welding, soldering, or threading — making them the fastest-installing SS pipe fitting on the Indian market today.
Connection method: Press-crimp (V-profile)
Grades available: SS 304 / SS 316
Size range: 15 NB to 108 NB (½" to 4")
Pressure rating: Up to 16 bar
Temperature range: -20°C to +120°C
Applications: Residential apartments, hotels, hospitals, schools, cold and hot water supply lines, HVAC chilled water
Key advantage: Flame-free installation — no hot-work permit required on site. Installs in occupied buildings with zero fire risk.
2. SS Triple (VV) Press Fittings — World-First Patented Technology
The Rhinox Triple (VV) Press Fitting is the most advanced press fitting manufactured in India — and the only triple-press fitting available anywhere in the world. While conventional press fittings create a single sealing point per connection, Rhinox's patented VV-Press mechanism creates three simultaneous sealing points, dramatically increasing joint strength, vibration resistance, and long-term leak-proof integrity under extreme pressure conditions.
Connection method: Triple-press (VV-profile) — registered patent
Grades available: SS 304 / SS 316
Size range: 15 NB to 108 NB
Pressure rating: Up to 25 bar
Temperature range: -20°C to +120°C standard / up to +200°C high-temp grade
Applications: High-rise residential towers, commercial complexes, hospitals, data centres, fire suppression systems, critical infrastructure
Key advantage: The only Indian press fitting rated for high-pressure zones in 20–40+ storey towers. No competitor equivalent exists in India.
See how the VV-Press compares against conventional press and welded systems on the Rhinox System Comparison page.
3. SS Buttweld Pipe Fittings
For high-pressure and high-temperature industrial pipelines, Rhinox India supplies stainless steel buttweld fittings manufactured to ASME B16.9 and ASTM A403 standards. Butt-welded into the pipeline for a structurally integral, flush joint, these fittings are the preferred specification for industrial plants, refineries, water treatment plants, and utility infrastructure. Used alongside Rhinox stainless steel pipes, they form a complete certified pipeline solution.
Types: 90° Elbow, 45° Elbow, Equal Tee, Reducing Tee, Reducer (Concentric and Eccentric), End Cap, Stub End
Grades: SS 304, SS 304L, SS 316, SS 316L
Standards: ASME B16.9, ASTM A403, EN 10253
Applications: Oil and gas, chemical processing, water treatment, power generation, pharmaceutical manufacturing
4. Brass Press Fittings
Where the application requires brass compatibility or mixed-metal system connections, Rhinox India's Brass Press Fittings deliver the same flame-free press-crimp installation in a dezincification-resistant (DZR) brass alloy. These fittings integrate seamlessly with the Rhinox Press system and are suitable for domestic water supply, gas distribution (subject to rating), and HVAC systems.
5. Multilayer Composite (MLC / PEX-PERT) Pipes — Compatible System Piping
For projects requiring a lighter piping solution with the same press-fit connectivity, Rhinox India's Multilayer Composite (PEX/PERT) Pipes support the full Rhinox press fitting system. Ideal for underfloor heating, concealed plumbing in residential builds, and high-flexibility routing where SS pipe rigidity is not required.
Technical Specifications — Rhinox Stainless Steel Pipe Fittings
All Rhinox India stainless steel pipe fittings meet the following technical parameters:
| Parameter | Specification |
|---|---|
| Material Grades | SS 304, SS 304L, SS 316, SS 316L |
| Size Range — Press Fittings | 15 NB to 108 NB (½" to 4") |
| Size Range — Buttweld Fittings | 15 NB to 150 NB (½" to 6") |
| Pressure Rating — V-Press | Up to 16 bar |
| Pressure Rating — VV-Press | Up to 25 bar |
| Temperature Range | -20°C to +120°C standard / up to +200°C high-temp grade |
| Sealing Element | EPDM O-ring — food-grade, UV-resistant (press fitting variants) |
| Surface Finish | 2B mill finish / BA bright annealed |
| Standards Compliance | ASME B16.9, ASTM A403, EN 10312, ISO 4633, IS 6913 |
| Certification | Third-party certified — BIS compliant for Indian market |
| Installation Method | Flame-free press-tool crimping — no welding or soldering required |
| Surface Treatment | None required — natural stainless steel finish is self-protecting |
| Patent | VV-Press Triple Crimp — registered patent, Rhinox India (world-first) |
Why Stainless Steel Pipe Fittings Outperform Every Alternative
Every plumbing system will eventually be tested by time, pressure, water chemistry, and temperature. Here is how stainless steel pipe fittings perform against the most common alternatives used in India:
SS Pipe Fittings vs GI Fittings
GI (Galvanised Iron) fittings corrode from the inside — a process that begins within 5–10 years in chlorinated municipal water. As the zinc coating degrades, rust particles and zinc ions enter the water supply. By 15–20 years, GI fittings typically fail through pinhole leaks, joint failure, or complete blockage. Stainless steel fittings are immune to this — they do not react with chlorine, and their passive chromium oxide layer is self-healing even when scratched.
SS Pipe Fittings vs Copper Fittings
Copper fittings are used in premium residential plumbing globally, but they have two critical disadvantages for India. First, copper prices are significantly higher than SS and are subject to commodity volatility. Second, copper requires flame soldering — a skilled process that involves open fire on construction sites, adding cost, safety risk, and the need for hot-work permits. Rhinox SS press fittings deliver better mechanical performance at lower installation cost with zero fire risk. Read our detailed SS pipes vs copper pipes comparison for the full breakdown.
SS Pipe Fittings vs CPVC / PVC Fittings
CPVC fittings are widely used in Indian residential plumbing due to their low initial cost. However, they degrade under sustained heat above 93°C, are susceptible to UV damage in exposed installations, and can leach trace plasticisers into hot water. They also become brittle with age and cannot be used in fire suppression systems. Stainless steel fittings handle temperatures up to 870°C, are fully UV-stable, and are non-reactive with water at any temperature — making them the only appropriate choice for a complete plumbing system including hot water lines.
How Rhinox SS Pipe Fittings Are Installed — The Press Fit Advantage
The installation method is where Rhinox India's Rhinox Press system delivers its most visible advantage over conventional plumbing approaches. Here is a step-by-step overview of press fitting installation:
Cut the SS pipe to the required length using a pipe cutter or circular saw — a clean, square cut is essential for a proper seal.
Deburr and clean the pipe end — remove any burrs or debris from the cut end to ensure the O-ring seats correctly.
Insert the pipe into the fitting — push fully into the fitting socket until it reaches the insertion depth mark. The EPDM O-ring is pre-installed in the fitting groove.
Position the press tool jaws around the fitting at the press zone — no alignment skill required.
Squeeze the press tool — the jaws crimp the fitting permanently onto the pipe in under 4 seconds. The joint is immediately pressure-tight and ready for system testing.
No flame. No flux. No threading. No skilled welder. And crucially — no cool-down time, no joint inspection delay, and no fire permit process. This is why major contractors and MEP consultants are shifting entire project specifications to the Rhinox Press system.
Smart Leak Detection Built In: Rhinox's VV-Press fitting system includes a built-in smart connect feature — during hydraulic pressure testing of the complete installation, any unpressed fitting automatically leaks, making it instantly identifiable. This eliminates the risk of missed connections that would only fail after the building is occupied.
Where Are Stainless Steel Pipe Fittings Used? — Application Guide
Rhinox India's stainless steel pipe fittings are trusted across India's most demanding construction and industrial sectors:
Residential Buildings and Apartments
Hot and cold potable water supply lines, overhead tank connections, bathroom and kitchen plumbing in apartments, villas, and individual homes. Stainless steel plumbing systems deliver hygienic drinking water without rust, zinc, or plasticiser contamination — critical for family health and BIS compliance.

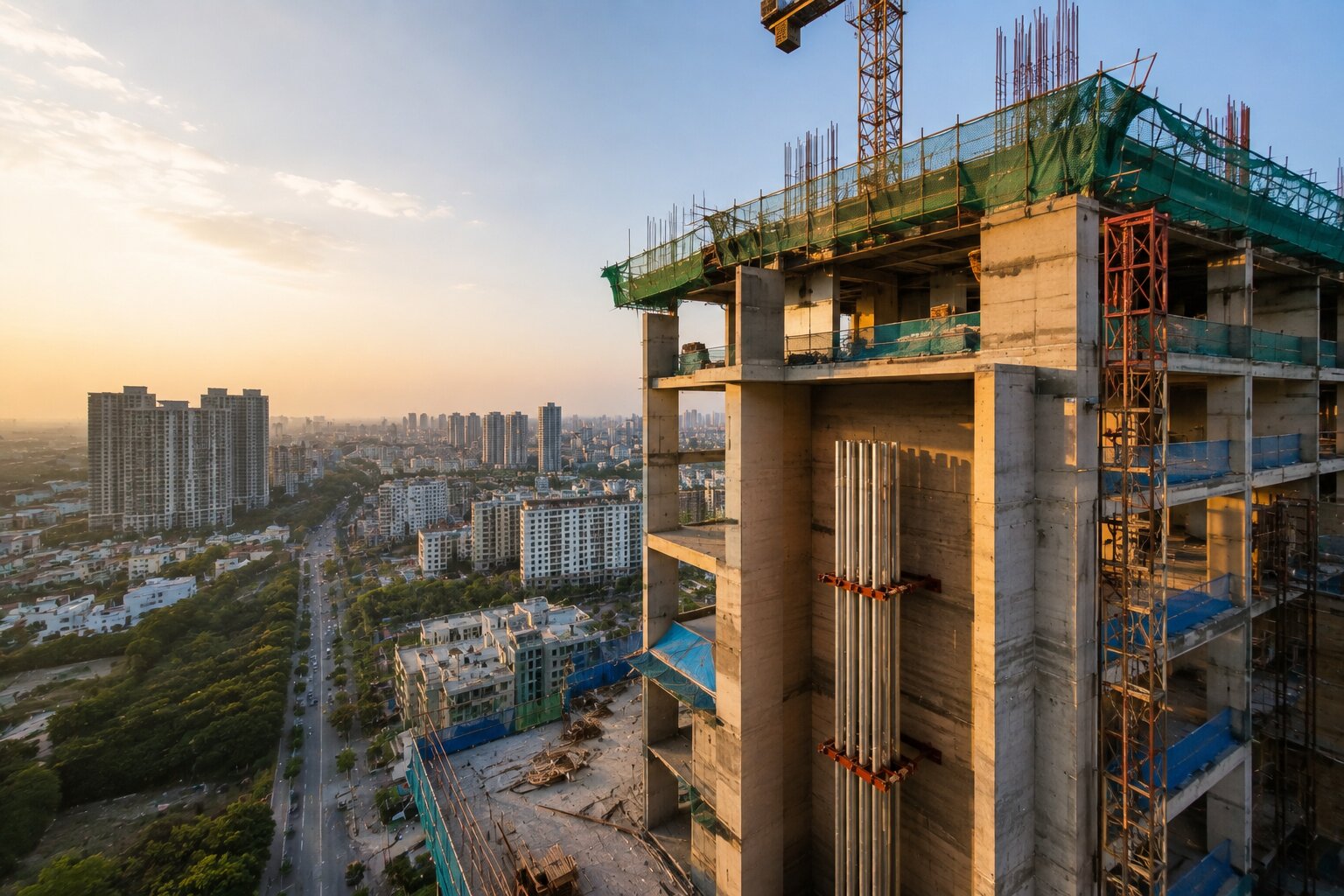

High-Rise Residential Towers and Commercial Complexes
Rhinox VV-Press fittings are pressure-rated for the highest zones in 20–40+ storey buildings — the only Indian press fitting designed specifically for the high-pressure water supply demands of premium residential towers, Grade A commercial offices, and mixed-use developments. Where standard press fittings cap out, the VV-Press system keeps going.
Hospitals and Healthcare Facilities
Potable water lines, medical gas pipelines, and sterile process piping in hospitals and clinics demand absolute hygiene and zero leak tolerance. SS 316L fittings with EPDM O-rings are certified food-grade and chemically inert — the only appropriate specification for critical healthcare water infrastructure.
Hotels, Resorts, and Hospitality
Complete water distribution networks, chilled water lines, and HVAC piping in 5-star hotels and resort developments. Stainless steel's aesthetic finish, combined with its permanent leak-free joints and zero maintenance requirement, makes it the material of choice for premium hospitality projects where ongoing plumbing disruption is unacceptable.
Industrial Plants and Process Facilities
Chemical processing, food and beverage manufacturing, pharmaceutical production — process pipelines requiring full corrosion resistance, pressure integrity, and hygiene certification. SS 316L buttweld fittings to ASME B16.9 and ASTM A403 are the industry standard for these demanding environments. Visit the Rhinox Advantage page for full capability details.
Fire Fighting and Suppression Systems
Stainless steel is non-reactive with fire suppressants and maintains full structural integrity under extreme heat — making it the safest and most reliable pipe and fitting material for dry and wet riser sprinkler systems. Unlike GI or CPVC, SS fittings do not fail when exposed to fire system testing chemicals or real fire events.
Infrastructure — Water Treatment and Smart Cities
India's Jal Jeevan Mission and smart-city infrastructure programmes are increasingly mandating stainless steel piping for municipal water loops exceeding 10-year service life. Rhinox India's sustainable plumbing solutions align directly with these government mandates — delivering infrastructure-grade performance with a 50+ year lifespan that matches the service life of the buildings and systems they supply.
India's Stainless Steel Pipe Fittings Market — Why It Is Growing
The demand for stainless steel pipe fittings in India is growing at a CAGR of approximately 4.78%, with the market valued at USD 0.87 billion in 2025 and projected to reach USD 1.10 billion by 2030. This growth is driven by several converging forces that directly benefit suppliers and installers who specify quality SS systems today:
Jal Jeevan Mission: Government mandate to deliver piped potable water to every rural household — creating massive national demand for certified SS plumbing infrastructure
Premium real estate growth: India's residential sector is shifting toward 50+ storey towers where standard GI plumbing cannot meet pressure zone requirements
Lead-free mandates: Emerging BIS and municipal regulations restricting lead content in plumbing materials are driving a shift away from brass and GI
Smart building integration: IoT water meters and smart plumbing monitoring systems require SS piping's low electromagnetic interference and long-term dimensional stability
Rhinox India is positioned at the centre of this growth — as the only Indian manufacturer with patented triple-press SS fitting technology, third-party certification, and a complete system offering from pipe to fitting to installation support. Explore our complete one-stop plumbing service for new developments.
Frequently Asked Questions — Stainless Steel Pipe Fittings
What are stainless steel pipe fittings used for?
Stainless steel pipe fittings are used to connect, redirect, branch, reduce, seal, or terminate sections of pipe within any plumbing or piping system. They are used in residential water supply, commercial HVAC, industrial process pipelines, fire suppression systems, pharmaceutical manufacturing, and food and beverage processing — any application where corrosion resistance, hygiene, and mechanical strength are essential.
What is the difference between SS 304 and SS 316 pipe fittings?
SS 304 is the standard grade for general-purpose plumbing and food processing. SS 316 adds 2–3% molybdenum, which significantly increases resistance to chloride and salt corrosion — making it the preferred grade for coastal environments, marine applications, chemical plants, pharmaceutical systems, and all potable water supply applications in India. Both grades are available across the full Rhinox India fitting range.
Are stainless steel pipe fittings safe for drinking water?
Yes. Rhinox India's SS pipe fittings are manufactured from food-grade stainless steel with EPDM O-rings in press variants — both materials are non-toxic, corrosion-resistant, and certified safe for potable water contact. They conform to applicable Indian and international standards including IS 6913 and EN 10312. The fittings are chemically inert, meaning they do not leach any substance into the water flowing through them.
What is the VV-Press Triple Press fitting and why is it different?
The VV-Press system is Rhinox India's patented triple-crimping technology — the world's first of its kind. While conventional press fittings create a single sealing point per connection, the VV-Press creates three simultaneous sealing points, dramatically increasing joint strength, vibration resistance, and pressure integrity. It is rated up to 25 bar and is the only Indian press fitting designed for high-pressure zones in high-rise buildings. No competitor equivalent exists. See the System Comparison page for a detailed head-to-head performance breakdown.
Do stainless steel press fittings require welding?
No. Rhinox press fittings — both V-Press and VV-Press — are designed for completely flame-free installation using a standard press tool. No welding, soldering, threading, or open flame is required. The tool permanently crimps the fitting onto the Rhinox SS pipe in under 10 seconds. This makes installation faster, safer, and suitable for occupied buildings or fire-sensitive environments where hot-work permits would otherwise be required.
What size SS pipe fittings does Rhinox India offer?
Rhinox India's press fitting range covers 15 NB to 108 NB (½" to 4"), while buttweld fittings are available from 15 NB to 150 NB (½" to 6"). For project-specific or non-standard sizes, contact the Rhinox technical team at 1800-120-6232 or visit the Rhinox Support page.
What certifications do Rhinox SS pipe fittings carry?
All Rhinox India stainless steel pipe fittings are third-party certified and comply with ASME B16.9, ASTM A403, EN 10312, and ISO 4633. The VV-Press technology is covered by a registered global patent. Certification documentation is available on request — contact us via the Contact page or the Rhinox Support portal.
How do I get a quote for SS pipe fittings from Rhinox India?
Call our toll-free number 1800-120-6232, email contact@rhinoxindia.com, or submit a request via the Contact Us page. Rhinox India supplies to contractors, developers, plumbing consultants, and MEP firms across India. Project-specific and bulk pricing is available. Our technical team also provides complimentary piping circuit design and layout support for large residential and commercial projects.
Explore the Complete Rhinox India Plumbing System
Stainless steel pipe fittings perform best as part of a fully integrated, certified piping system. Rhinox India supplies every component you need — from pipe to fitting to installation tool — under a single quality-assured brand.
| Product / Page | What It Covers |
|---|---|
| Stainless Steel Pipes | SS pipe range compatible with all Rhinox press fittings — grades 304 and 316L |
| Double (V) Press Fittings | Full range, dimensions, and V-press specifications — up to 16 bar |
| Triple (VV) Press Fittings | World-first patent — high-rise and high-pressure applications up to 25 bar |
| Brass Press Fittings | DZR brass press fittings for mixed-material and gas distribution systems |
| MLC / PEX-PERT Pipes | Multilayer composite pipes for flexible routing and underfloor heating |
| Rhinox Press System | How the complete flame-free press installation system works |
| System Comparison | Rhinox press vs welding vs threading vs soldering — head-to-head |
| Rhinox Advantage | Full technical and commercial advantages of the Rhinox system |
| SS Pipes for Water Supply — Blog | Why stainless steel is the best material for water supply plumbing systems |
| Contact / Get a Quote | Project enquiries, bulk pricing, and technical support — toll-free 1800-120-6232 |
Ready to Specify Rhinox Stainless Steel Pipe Fittings for Your Project?
Whether you are a developer specifying a 40-storey residential tower, a plumbing contractor fitting out a hospital, or a homeowner upgrading to a lifetime plumbing system, Rhinox India's certified stainless steel pipe fittings are engineered for your exact requirement — in the right grade, the right size, and the right connection method.
Our technical team provides one-stop plumbing system design support — from layout planning to product selection to installation training for your contractors — at no extra cost for qualifying projects.
Toll Free: 1800-120-6232
Email: contact@rhinoxindia.com
Office: 524, Phase-5, Udyog Vihar, Sector-19, Gurugram – 122008, Haryana, India
